I/O adapter for connecting external inputs/outputs via the Kentix system socket with 2x digital inputs and 2x relay outputs (up to 30VDC/2A), temperature-range: -20°C-70°C, size 44x33x39mm.
TYP A: For MultiSensor and SiteManager (All variants)
TYP B: For SmartPDU (All variants)
Accessories
slide 1 to 3 of 3
MultiSensor mit Ethernet (PoE) and PIR sensor (360°)
KentixONE
LAN (PoE)
Radio (BLE)
Sysport (TYPE A)
- Integrated sensors: 8
- Monitored threats: up to 19
- Web server (HTTPS)
- E-MAIL - SNMP-V2/3 - REST-API
- LAN-RADIO (BLE) repeater integrated
Network-compatible MultiSensor for complete room monitoring of up to 19 threats. Monitors an area of approx. 20-25m². The connection is made via Ethernet with PoE (Class 1) and therefore requires no additional cabling. Operation is possible as a stand-alone sensor with integrated KentixONE software (HTTPS) or via a networked KentixONE system with SiteManager. The sensor is mounted on the ceiling using the mounting bracket supplied. Optionally, it can also be mounted in an IT rack or on the wall using the 19’ bracket (accessory).Also ideal as an independent room sensor to supplement network monitoring systems (PRTG, Nagios, CheckMK, etc.) via SNMP-V2/3 or REST-API. The sensor can also send alarm e-mails in stand-alone mode.Integrated sensors: temperature, humidity, dew point, carbon monoxide sensor (CO), 360° PIR motion sensor, 3-axis G-sensor, digital input/outputs.
DoorLock AccessManager Radio (BLE) for 16 doors
KentixONE
LAN (PoE)
Radio (BLE)
Sysport (TYPE A)
The Kentix AccessManager (wireless, BLE) is the control unit for wirelessly networked Kentix DoorLock components such as door knobs (DoorLock-DC with BLE) or door handles (DoorLock-LE with BLE). The AccessManager is network-compatible and is supplied with power via Power over Ethernet (PoE). The AccessManager can be operated as a master device or in a network with other AccessManagers. The KentixONE software is already integrated via the integrated web server (HTTPS). Configuration is carried out via a web browser and, depending on the operating mode, locally on the AccessManager itself or on a central instance such as the SiteManager.The AccessManager can be mounted on the wall, on the ceiling or in the suspended ceiling. The supplied antenna can be extended using an optional magnetic base holder with a 1 metre connection cable. This means that the AccessManager can be mounted indoors and the antenna outdoors for flexible and secure installation.
Fittingly...
DoorLock AccessManager Radio (868MHz) for 16 doors
KentixONE
LAN (PoE)
Radio (868MHz)
Sysport (TYPE A)
- KentixONE already integrated
- up to 16 knobs/handles
- unlimited networkable
- Stand-Alone - Web-Serber (HTTPS)
- Radio range up to 20m
The Kentix AccessManager (wireless, 868MHz) is the control unit for wirelessly networked Kentix DoorLock components such as door knobs (DoorLock-DC with 868MHz) or door handles (DoorLock-LE with 868MHz). The AccessManager is network-compatible and is supplied with power via Power over Ethernet (PoE). The AccessManager can be operated as a master device or in a network with other AccessManagers. The KentixONE software is already integrated via the integrated web server (HTTPS). Configuration is carried out via a web browser and, depending on the operating mode, locally on the AccessManager itself or on a central instance such as the SiteManager.The AccessManager can be mounted on the wall, on the ceiling or in the suspended ceiling. The supplied antenna can be extended using an optional magnetic base holder with a 1 metre connection cable. This means that the AccessManager can be mounted indoors and the antenna outdoors for flexible and secure installation.
Related Products
slide 1 of 1

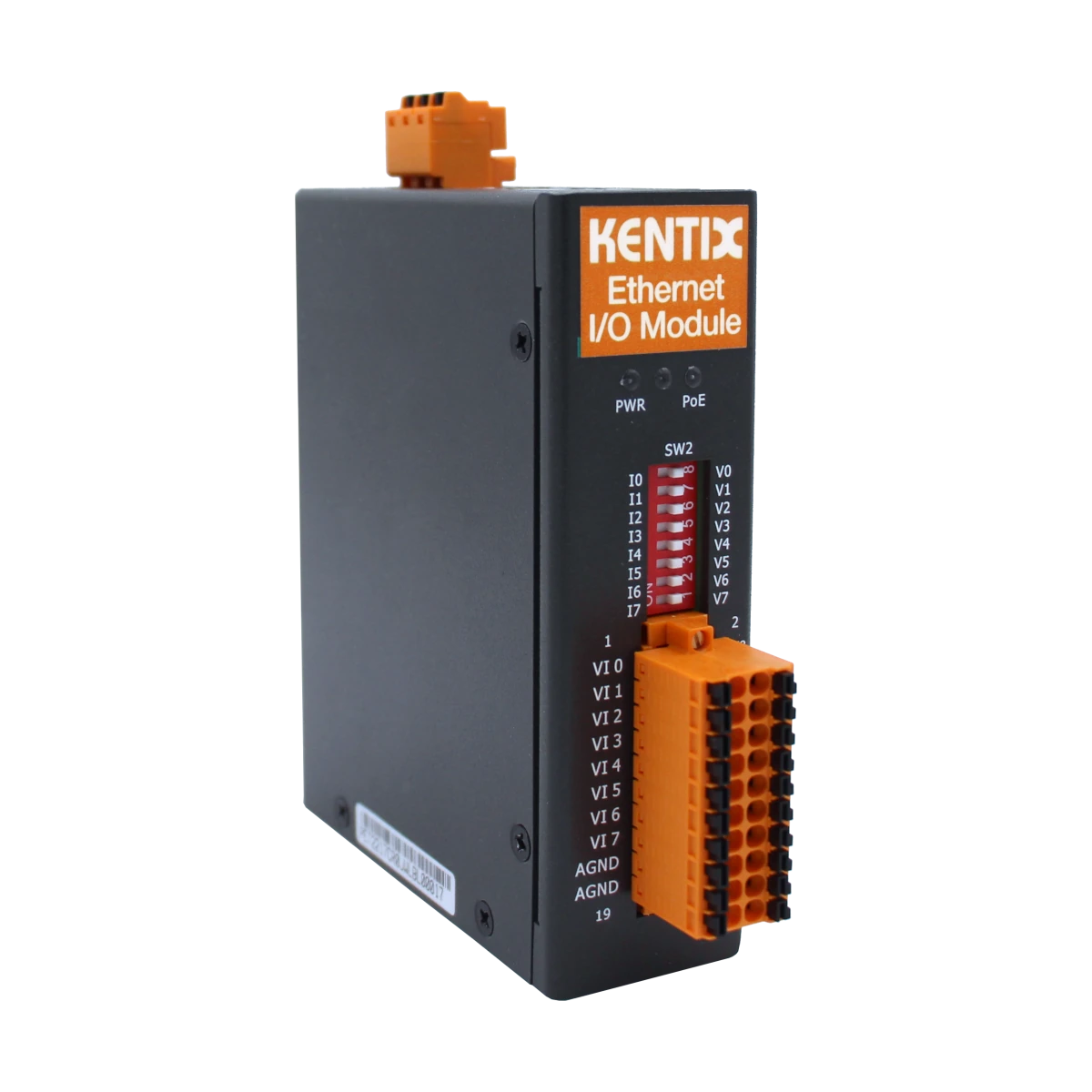

Digital I/O-Module with 16-Inputs and Ethernet (PoE)
LAN (PoE)
- 16 digital inputs
- connection of external alarm messages
- Integrated web server
- Power over ethernet (PoE)
The I/O expansion module connects to an AlarmManager/SiteManager and is used to connect external alarm messages. The communication takes place via Ethernet. Thus, the module can be mounted at any location. The configuration is done in the KentixONE..16 digital inputs for dry-contacts (e.g. air-conditioning, UPS system, external sensors, etc.)
Delivery Contents
- 1 KIO3 adapter
- 1 patch cable 5m
